Highlights

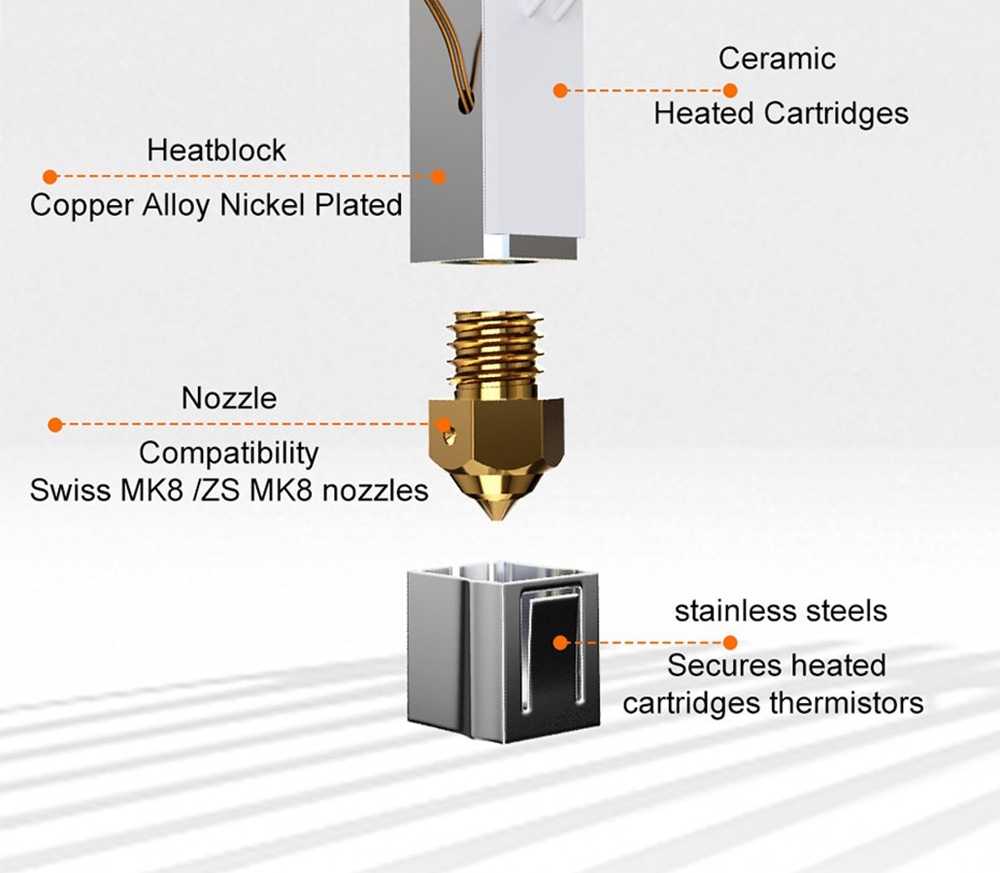

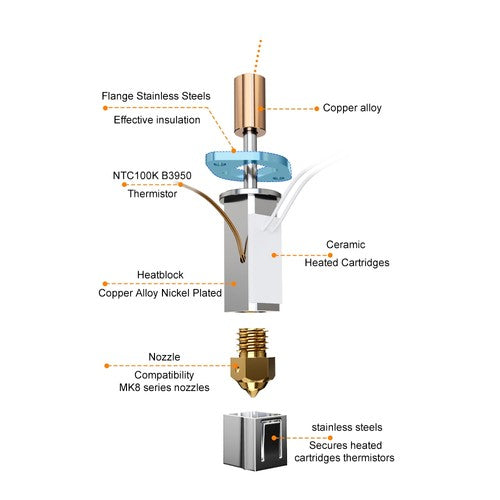

1. Planar contact heating elements have a more certain contact than ceramic heating ring contacts.
2. Compared to the original OT hotend heating elements and thermistors are easy to maintain and replace.

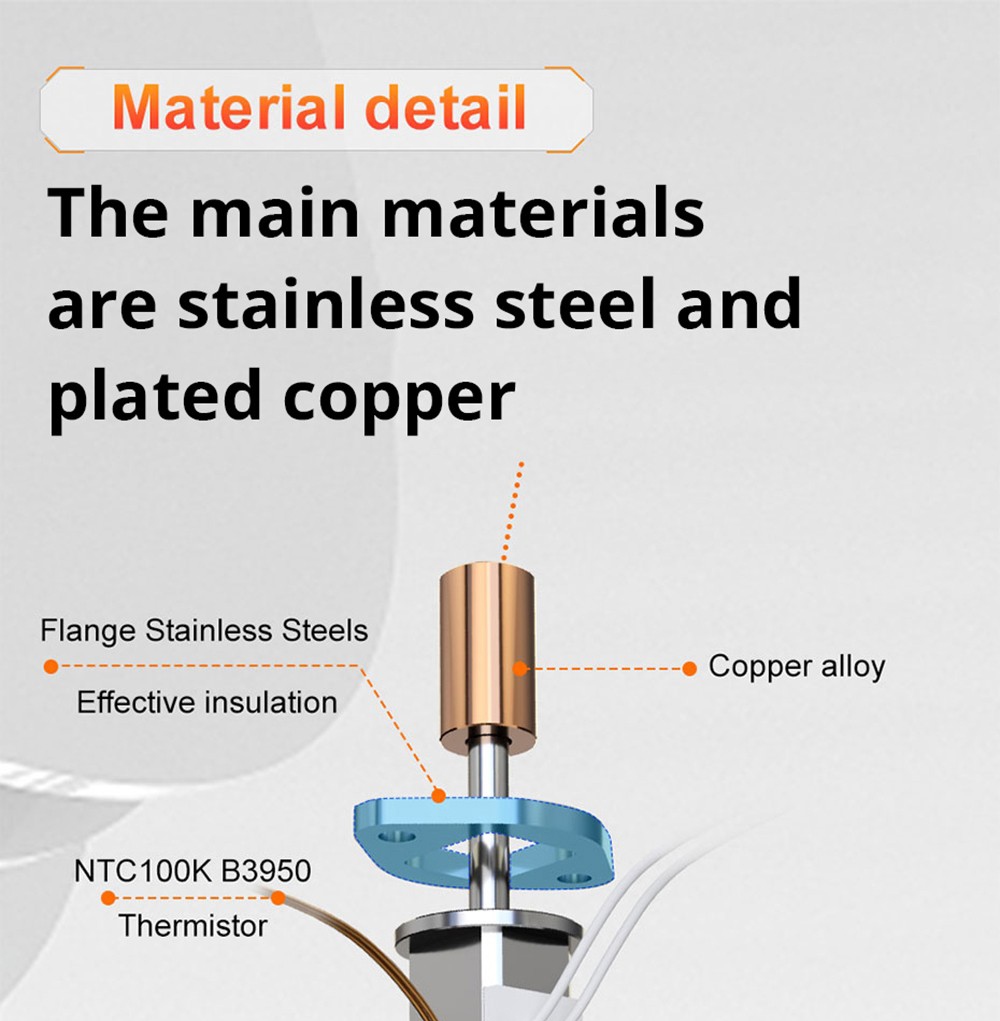

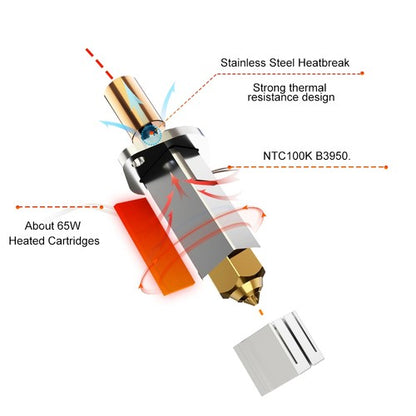

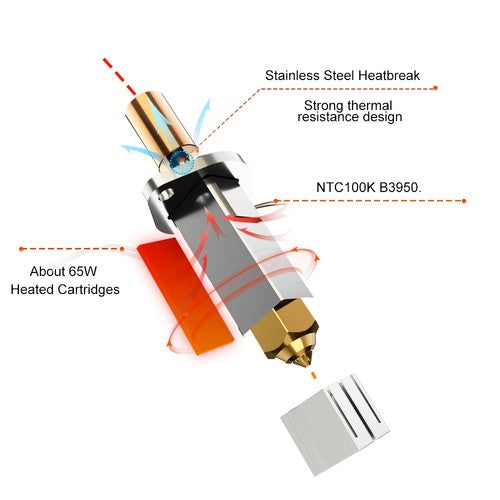

3. Separate design of fixed flange and heating core. The flange is made of a material with a low thermal conductivity to reduce the working temperature of the heat sink fixed with it by screws.

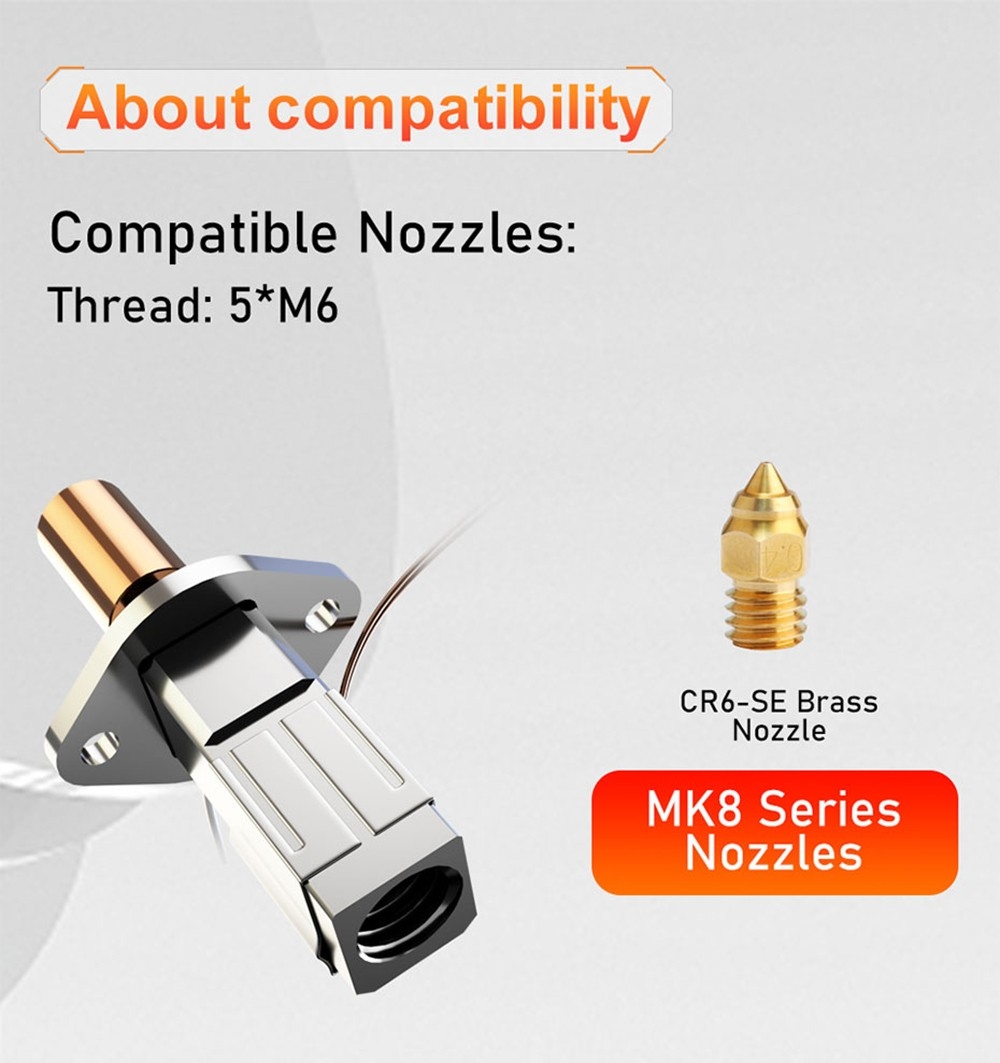

4. Compatible with various MK8 series nozzles that are readily available.

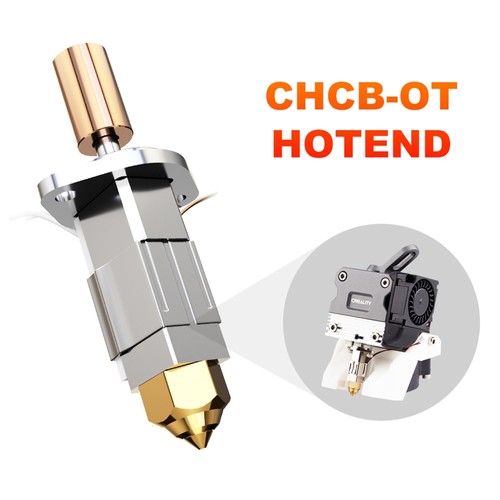

5. Drop-in replacement for the hotend of the Creality K1 /Creality K1 MAX 3D printer.

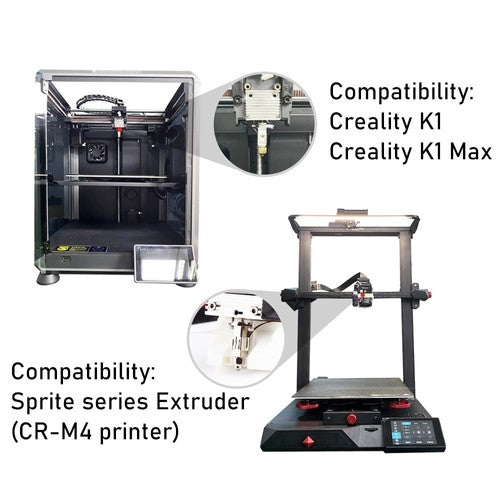

Compatibility:

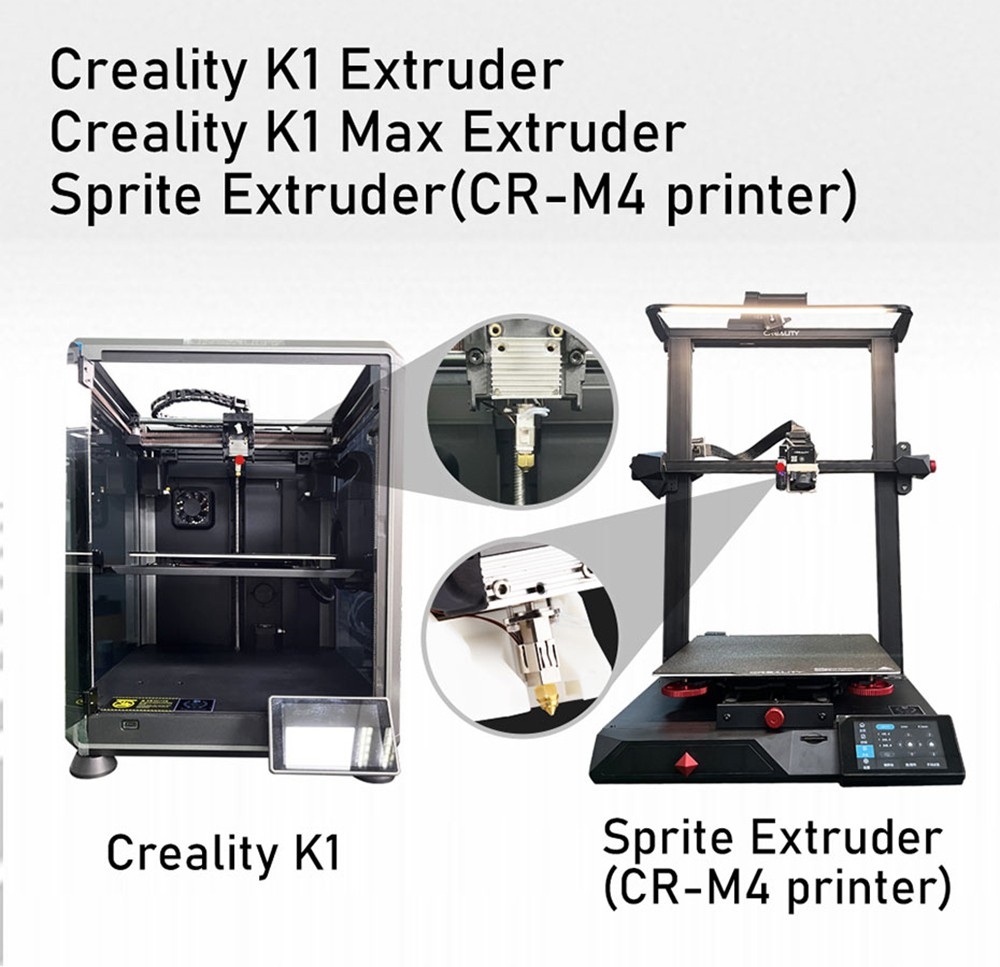

For Creality K1/K1 max CR-M4 it is a drop-in replacement.
For other sprite extruder-equipped Creality printers, the overall height may be 10MM higher with this hotend installed, so you will need to use the print parts to move the original CR-TOUCH and 4010 cooling fan down 10mm.
Specification
| General | Brand: Trianglelab Type: Hotend Model: CHCB-OT |
| Specification | Heating element resistance value: 7.5-9.5 ohms Nominal power: 24V 67W @24 Celsius (61-77W) Thermistor: NTC 100Kohms B3950 1% (Choose 1 in marlin firmware) Compatible Nozzle: MK8 Series Nozzles Compatible 3D Printer: Creality K1/K1 Max |
| Weight & Size | Package Weight: 0.54kg Package Size(L x W x H): 13x8x5cm |

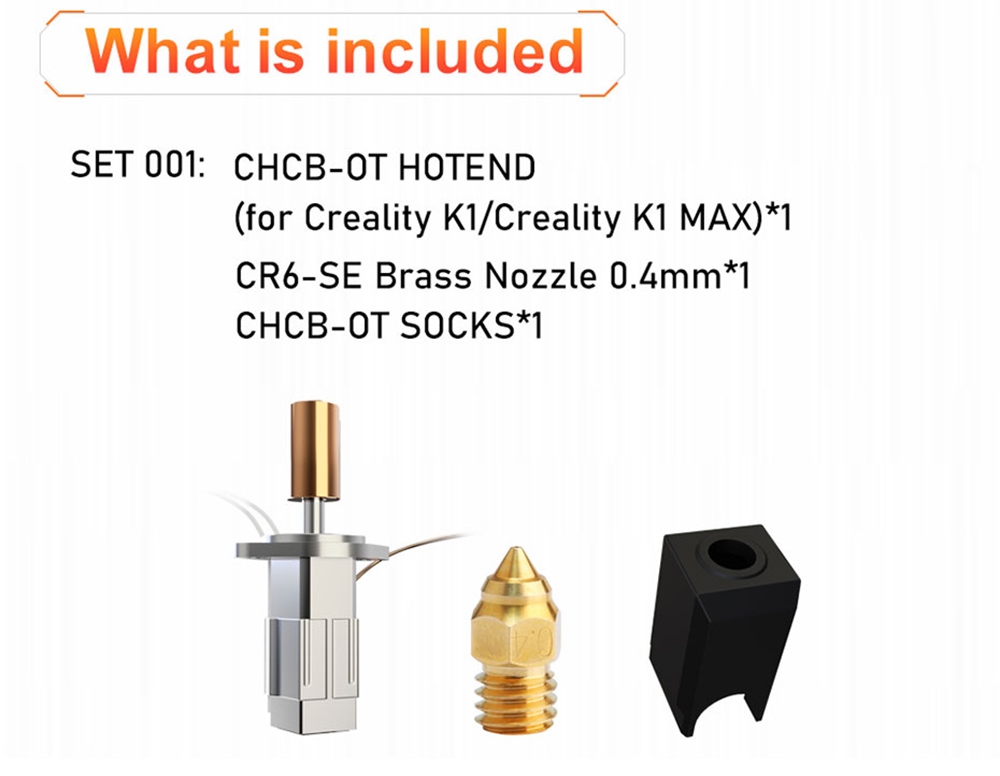

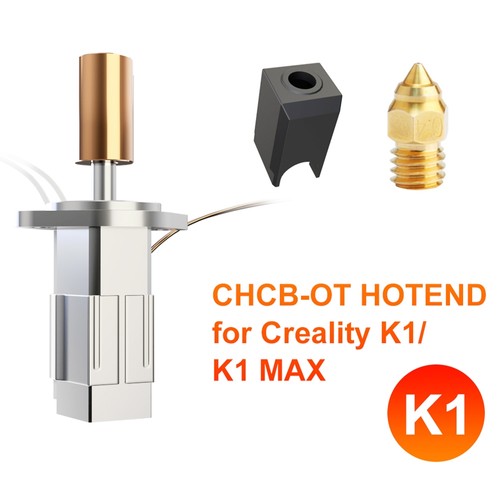

| Package Contents | 1 x CHCB-OT Hotend (Creality K1/K1 Max) 1 x CR6-SE Brass Nozzle 0.4mm 1 x CHCB-OT Socks |
